Introduction

The utilization of seaweed is not limited to a source of hydrocolloid compounds, it also produces a unique flavor. Components such as free amino acids, 5′-nucleotides, guanosine-5′-monophosphate (GMP), and inosine-5′-monophosphate (IMP) from seaweed synergize with each other which then produces the umami taste. Seaweed’s umami compounds have aroused the interest of researchers in recent years ^1–4. The umami compound was discovered by Kikunae Ikeda over a century ago ⁵. The free amino acids (L-glutamate and L-aspartate) in seaweed produce a stronger umami flavor than other compounds ⁶.  Several methods can acquire free amino acids, such as acid hydrolysis ⁷, enzymatic processes ⁴, and hot water extraction ¹. The water extraction method is very applicative, environmentally friendly, and economical, with a shorter hydrolysis time of ^8,9.

Some researchers have hydrolyzed umami compounds from various kinds of brown seaweed ^1,2,7, but the umami compound of the brown seaweed of Sargassum aquifolium has never been studied. Sargassum aquifolium is a brown macroalga that grows in the low intertidal areas, spread across Southeast Asia, and is the most common form of Sargassum found in Indonesia ¹⁰. Brown seaweed generally has alginate content, polysaccharides of this hydrocolloid class will form a gel after the hot water extraction process ¹¹, which causes its usage as umami flavoring less than optimal. Furthermore, umami compounds are also easily degraded during processing that involves heat ¹².

The spray drying method of microencapsulation has been shown to improve the heat stability of umami compounds, hence reducing the rate of degradation ¹³. Maltodextrin (MD) has also been shown to be useful as a coating material in the microencapsulation of umami compounds in several studies ^8,13,14. One of the key criteria for the microencapsulation of umami chemicals is the addition of an MD ratio of ¹⁵. It can considerably improve product solubility while lowering hygroscopicity ^15,16. However, there has never been any research on the microencapsulation of umami chemicals from Sargassum aquifolium. This study aimed to determine the optimal ratio of MD in the process of microencapsulation of umami flavor enhancer from Sargassum aquifolium of Indonesian waters using the spray drying method. As a natural umami taste enhancer, this new product might be a viable option.

Materials and Methods

Raw Materials

The raw materials used in this study are Sargassum aquifolium from the Beach of Garut, West Java, Indonesia, and MD with Dextrose Equivalent (DE) 9-13 (Neo-Maldex). Sargassum aquifolium is cleaned of impurities such as sand, then dried in a drying cabinet (OVG-12, Agrowindo, Indonesia) at 50 °C for 5 h. The dried Sargassum aquifolium was milled (disc mill model AGC-15, Agrowindo, Indonesia) and sieved with a 60 mesh sieve. Then seaweed powder is stored at low temperature (-20 °C) until used.

Extraction of Umami Compounds

Seaweed powder (50 g) soaked in hot water (1000 mL) at 70 °C (± 1 °C) using a magnetic hot plate stirrer (Ika Magnetic Stirrers C-MAG HS7). The stirring speed is adjusted to 180 rpm for 30 minutes. The extract was then filtered using Whatman filter paper no. 41, the filtrate was frozen until used ^8,17.

Microencapsulation of Extract Seaweed

MD was added to the seaweed extract according to treatment (10, 20, and 30 % w/v). Each mixture was homogenized separately using a homogenizer (Daihan HG-15D, Daihan Scientific Co., Ltd) at 3000 rpm for 15 minutes. Each emulsion was then dried in a BUCHI Mini Spray Dryer B-190. The drying conditions consist of an inlet air temperature of 120 ± 2 °C, an outlet air temperature of 80 ± 1 °C, and a feed flow rate of 6.0 mL/minute with a pressure of 1.5 bar. The powder obtained is then stored in a metalized vacuum sealer package until used.

L-glutamic acid

L-glutamic content was measured using the L-glutamic acid assay kit from Megazyme (K-Glut, Ireland), which is measured by the increase in absorbance at 492 nm using a spectrophotometer (Shimadzu UV Vis-1601). 0.1 mL of the diluted flavor enhancer sample with 2.0 mL of distilled water, 0.5 mL of solution 1 (35 mL of buffer pH 8.6 plus 0.02% sodium azide w/v), 0.2 mL of solution 2 (nicotinamide-adenine dinucleotide/NAD+ plus iodonitrotetrazolium chloride/INT), and 0.05 mL of suspension 3 (diaphorase). Let stand for 2 minutes, then read the absorbance at 492 nm (A1). Then add 0.05 mL of solution 4 (glutamate dehydrogenase/GIDH), and let stand. Read the absorbances of the solutions at the end of the reaction (approx. 8-10 min) (A2). ΔAL-glutamic acid is obtained after the final values A2-A1.

The concentration of L-glutamic acid can be calculated as follow:

Where:

V           = final volume (2.90 mL)

MV        = molecular weight of L-glutamic acid (147.13 g/mol)

Ɛ            = extinction coefficient of INT-formazan at 492 nm

= 19900 (1 x mol^-1 x cm^-1)

d           = light path (1.0 cm)

v            = sample volume (0.1 mL)

Moisture Content and Water Activity (a_w)

The moisture content of the microcapsule was determined using a moisture analyzer, Shimadzu, MOC63u (Japan). The a_w of the microcapsule was determined using a water activity analyzer, Rotronic, Hygropalm-HP23-Aw-A (Switzerland), at 25 °C.

Color Analysis

Color measurement using the Minolta CR-310 Chromameter (Konica Minolta Business Solutions Asia Pte Ltd) calibrated with a standard white ceramic plate (L* = 94.95; a* = 0.14; b* = 0.27) prior to reading. The hue angle, H° and chroma, C° were calculated by using H° = tan ^-1  and C° = (a² + b²)^1/2. The hue angle is used to identify colors (red, yellow, green, and blue), whereas chroma distinguishes between bright and dull colors ¹⁸.

Hygroscopicity

Each flavor enhancer with known weight was placed in a closed jar separately, the humidity was adjusted using saturated NaCl (Merck) to 75.5 %, stored for 7 days with a controlled temperature of 25 °C. Hygroscopic value (Hg) is expressed in% of water vapor adsorbed by the product which is calculated using the following equation.

Where DX = increase in flavor enhancer mass (g), X = flavor enhancer initial mass (g), and Xi = flavoring water content before exposure to environmental air (% g) ¹⁸.

Bulk and Tapped Density

The Bulk Density value is obtained by pouring an amount of powder flavor enhancer into a 10 mL measuring cup, adjusting it to 0 then weighing it. The sample weight obtained is then divided by the volume of the measuring cup (10 mL) so that the bulk density value is obtained. The same procedure is also used to obtain the tapped density value, except when the measuring cup which has been filled with the sample is tapped mechanically until it reaches a constant volume. Tapped density is calculated using the same formula as bulk density ^19,20.

Compressibility Index and Hausner Ratio

Compressibility index or Carr index and Hausner ratio were used to measuring the flow power of powder samples. Both are obtained from the density of the mass and tapped density of the flavor enhancer using the following equation ²¹.:

Wettability

Wettability was acquired after some flavor enhancer samples (10 g) were poured into 100 mL of distilled water that was already available in a 250 mL chemical glass. The time it takes for the sample to first touch the water surface until it is completely wet is a wettability value ²².

Water Solubility Index (WSI) and Water Absorption Index (WAI)

The water solubility index (WSI) was obtained by careful weighing of the flavor-enhancing powder 1.0 g, mixed in 30 mL of water, and incubated for 30 minutes in a water bath (Memmert WNB 10) at 30 °C. The mixture was then centrifuged (Gemmy PLC-03 8 Hole) for 15 minutes at 3000 rpm. The supernatant obtained was collected into a known weight of petri dishes, while the residue was weighed after drying for 8 hours in an oven (Binder ED 53) at 105 °C and expressed as the WSI value that had been accumulated with the initial sample weight (1.0 g). The water absorption index (WAI) is calculated based on the mass of solids remaining in the supernatant divided by the initial sample weight (1.0 g) ²³.

Morphology Characterization and Particle Size Measurement

Morphology characterization of the flavor enhancing powder was analyzed using an analytical scanning electron microscope (JSM-6510 LA, Jeol Ltd.). Particle size distribution was measured using a particle size analyzer LLPA-C10 (Labtron Equipment Ltd.), using the principle of laser light scattering, with a measurement range for dry disperse 0.01 – 2000 µm.

Results and Discussion

Glutamic Acid Content

The presence of glutamic acid in flavor enhancers is the most significant factor since it influences the taste of umami generated. L-glutamic acid is 0.61 g/100 g in Sargassum aquifolium extract. MD as a coating material is quite effective in protecting umami compounds from Sargassum aquifolium extract, where microcapsules with a 30 % MD concentration have the L-glutamic acid 0.46 g/100 g, while the lowest is at 10 % MD concentration (0.18 g/100 g). This indicates that MD has a chemical structure suitable for the core material, strengthened by previous research ¹⁶. The chemical structure of the wall material that is not suitable will cause the coating of the core material to be not optimal so that a lot of it is wasted. The smaller the particle size, the more likely it will form a whole spherical structure like a ball which is known to be able to maintain the flavor-enhancing compounds optimally ²⁴. MD is also known to be able to significantly increase the thermal stability of flavor enhancing microcapsules and improve the controlled release of microcapsules for up to 60 minutes in boiling water ^12,13.

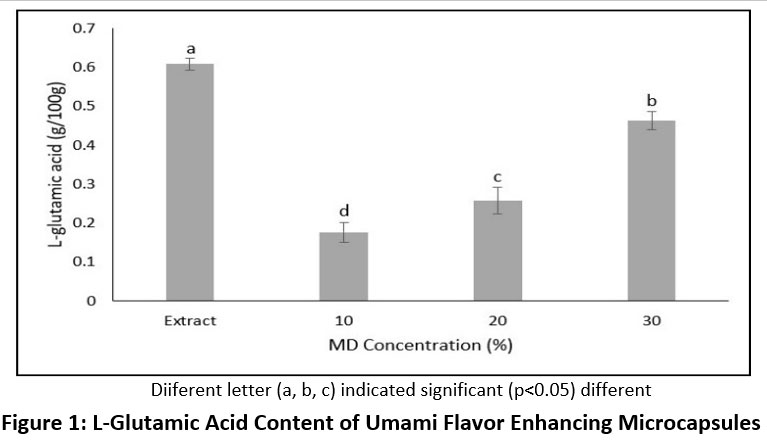

Figure 1: L-Glutamic Acid Content of Umami Flavor Enhancing Microcapsules. Click here to view Figure

Moisture Content and a_w

The umami flavor enhancer from seaweed has low moisture content and a_w (Table 1), indicating good efficiency of the drying process and product stability. Microbial growth will not be optimal, so the product shelf life will be long ²⁰. This result follows other studies, which used MD as a coating material in the encapsulation process for umami compounds ⁸, while Fazaili et al., ²⁵ also observed a decrease in water content with an increase in the concentration of the carrier material which is dried with various concentrations of MD. The use of MD in the flavor-enhancing microencapsulation process resulted in moisture content within the desired range (3.10 – 3.63%). The water content of microcapsules coated with MD by spray drying generally ranges from 2.11 to 4.66% ^26,27.

Similar to water content, the a_w value of the flavor enhancer also decreases with the addition of MD as a coating material, in line with research conducted by Nambiar et al., ²⁸. However, excessive concentrations of MD will cause the product to stick to the nozzle and block the hot steam. The increase in MD up to 30% caused the a_w value of the product to decrease from 0.25 to 0.23, which was previously confirmed by Cao et al., ²⁹. a_w values below 0.60 for powder products are good, able to suppress microbial growth, while a_w values of 0.2 – 0.4 are considered the most optimal because they are stable against adverse reactions such as oxidation, browning, hydrolytic, and enzymatic ^30,31.

Tabel 1: Water content, a_w, hygroscopicity, water soluble index, and water absorption index of microcapsules.

Note: The data are representations of the mean values ± standard deviation. Different superscripts in the same column showed statistically significant differences (p <0.05).

Hygroscopicity

Hygroscopicity in the food sector is closely related to the porosity and amorphous sugar content of the product. The powder produced by spray-drying tends to form amorphous solids. The process of evaporation of water material takes place quickly so that the product is more hygroscopic ³². The umami flavor enhancer has a fairly good hygroscopicity value with a value range of 15.47 – 20.56%, higher than that reported by Gagneten et al., ³³. Apart from being hygroscopic, spray dried products have a porous surface structure and a low glass transition temperature (Tg). Improper handling after drying, allows the product moisture content to increase. The addition of coatings is very effective in correcting these deficiencies ^24,34. MD has anti-hygroscopic properties which can change the balance of hydrophilic/hydrophobic particles, which results in lower water absorption ¹⁵.

Water Solubility Index and Water Absorption Index

The ideal powder product has a high WSI value. There can be no significant differences in the sample WSI. However, the powder WSI value was higher when the MD concentration increased. In general, the solubility of the product was very good (93.18 – 94.49%). The presence of MD increased the solubility of atomized samples. This is due to the very high hydroxyl (OH) group in the MD molecule. MD also produces a more porous powder microstructure, so that the powder will more easily dissolve in water ^18,35. The umami compounds in the extract are also hydrophilic. Umami compounds will interact with taste receptors when they meet saliva, one of the unique and important characteristics of food flavor enhancers ⁸.

Unlike the case with WSI, WAI is a solid that remains after the centrifugation process. The concentration of WAI is generally very small and was confirmed in this study. Taste enhancers had WAI values ​​in the range of 0.03 – 0.06%. There was no statistically significant difference. The same result was also reported by Vidović et al., ²³, the low value of WAI was influenced by the hydrophilic group of the particles that bind water molecules which then form a gel. The values ​​of WSI and WAI are the determining factors for the quality of powders used in the food industry. The industry prefers powder products with high WSI values ​​and low WAI. Powders with poor solubility can cause high economic losses for companies ³⁶.

Wettability, Particle Size, and Morphological Characteristics of Microcapsules

Apart from high solubility, flavor enhancers should ideally also have a fast wettability, do not float, and sink completely. The average wettability time of the seaweed flavor enhancer ranged from 427 to 689 s, faster than the wettability of the sumac extract microcapsules (1239 – 3263 s) reported by Caliskan & Dirim ³⁰, but longer than the wettability of the spray-dried blackberry microcapsules with the same coating material ³⁷. Although it has high solubility and porous particle structure ^38,39, the main component of MD preparation is starch so it requires a longer wettability time ⁴⁰. There are several ways to speed up the wettability time, such as the addition of inulin in the coating material formulation which has been confirmed to be able to significantly shorten the wettability time of the spray drying powder ³⁶. Several other aspects such as a decrease in the drying temperature (inlet or outlet) and the concentration of the coating material will cause a faster wettability time, due to the size and structure of the resulting particles.

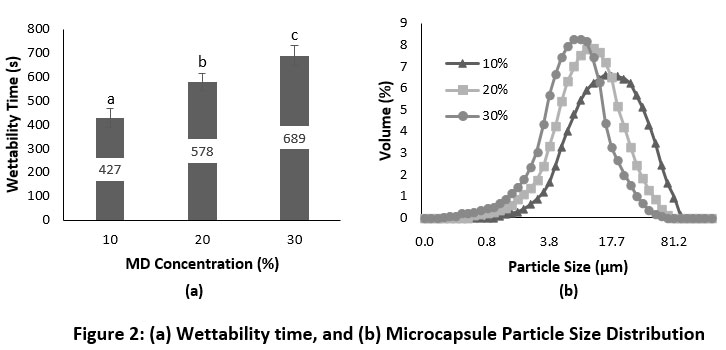

Figure 2: (a) Wettability time, and (b) Microcapsule Particle Size Distribution Click here to view Figure

Figure 3: Morphology of umami flavor enhancer with various concentrations of MD (a) 10 %, (b) 20 %, and (c)30 % Click here to view Figure

The particle size of the umami flavor enhancers of Sargassum aquifolium ranges from 0.19 – 94.57 µm, smaller than that reported by Mayasari et al., ¹⁶ (43.14 – 101.71 µm). The particle size distribution of each coating concentration was observed, flavor enhancers with MD 30% produced the smallest particle size distribution (0.19 – 59.371 µm) with a dominant size of 5.21 – 11.17 µm (47.51 %), and a peak size of 8.23 µm, flavor enhancers with MD 20% produced particles with a size distribution of 0.62 – 69.60 µm, dominant size 8.23 – 7.21 (38.06 %, with a peak size of 11.17 µm, while flavor enhancers with 10% MD had the largest particle size distribution (1.13 – 94.57 µm) with the size dominant 11.17 – 27.90 µm (45.05%), and peak particle size at 15.16 µm.

Sargassum aquifolium contains alginate polysaccharides. These hydrocolloid compounds cause less perfect encapsulation, irregular particle shape, and stick together. This condition can be seen in Figure 3a. An increase in MD of up to 30 % results in a smoother microcapsule surface and a more uniform and even shape of the particles (Figure 3c). Medina-Torres et al., ⁴¹ reported that the results of microcapsules by spray drying with MD coating material have a very small size distribution (10 – 40 µm), with a rough, hollow, irregular surface morphology with structural cracks on the surface. The high drying temperature will result in smaller particles with finer and more rounded morphology ^16,35.

Colour Parameters

The color attribute is one of the sensory attractions that need attention. Ideally, the flavor enhancer should be a bright color so that it doesn’t affect the final color of the product when added. The seaweed extract used tends to be brown with details L* = 58.31; a* = 6.29 and b* = 20.16, while the MD used is bright white (L* = 97.83; a* = 0.21 and b* = 1.94). The L * value of flavor enhancement significantly increased (76.76 to 81.49), resulting from the dominant white color of MD ⁴². a* (4.32 to 3.16) and b* (16.35 to 14.29) values decreased as the coating agent concentration increased. MD produced good retention of flavor-enhancing pigments. This result was in line with the color change of the tea water extract microcapsules coated MD with spray drying reported by Nadeem et al. ⁴³.

Table 2: CIELAB colour parameters of microcapsules.

Note: The data are representations of the mean values ± standard deviation. Different superscripts in the same column showed statistically significant differences (p <0.05).

The hue angle is related to the color produced, the value 0° representing red and 90° representing yellow. With increasing MD concentration, the color change towards yellow is getting bigger, where the hue angle from 75.18 to 77.52, while the chroma value decreases (16.91 to 14.64), it is possible because high temperatures cause the color pigment to degrade slightly ²⁸. Caparino et al., ¹⁸ also explained that spray drying resulted in very small particle size so that the resulting mango powder was brighter. The increase in brightness will cause a decrease in color sharpness (Chroma) in addition to the effect of white MD.

Bulk and Tapped Density, Carr Index and Hausner Ratio

Powder flowability can be determined by the value of bulk and tapped density, Carr index, and Hausner ratio. The bulk and tapped density values for the umami flavor enhancer can be seen in Table 3. The bulk density of seaweed flavor enhancer powder was found to be greater in microcapsules coated with 30 % MD (0.46 g/mL), as well as the tapped density of powder at the same concentration (0.54 g/mL). MD particles that are bigger than the core particles will cause the density of the powder produced to increase with the addition of MD. Besides, powders with lower water content are also known to have a greater density ^43,44. This is in line with what Singh et al., ⁴⁵ reported, an increase in the concentration of MD up to 300 % which was dried by spray drying would cause the tapped density of powder to increase from 0.38 – 0.44 g/mL.

The increase in coating material concentration also has an impact on decreasing the volume of particles, which is caused by decreased air formation in the structure, so that the bulk and tapped density increases ¹⁹. In contrast to coating materials, an increase in intake air temperature tends to result in a lower bulk particle density ¹⁶. An increase in inlet temperature followed by a decrease in the feed flow rate causes the outer dry layer of the droplet surface to form rapidly, the outside will form a moisture-proof film while the inside forms a hollower structure ²⁰. When the hollow structure decreases, the particle volume decreases, which affects the cohesiveness of the particles. The cohesiveness of the structure is an important indicator of powder flow properties, expressed by Carr index, and Hausner ratio values.

Table 3: Bulk and tapped density, Carr index, and Hausner ratio of microcapsules

Note: The data are representations of the mean values ± standard deviation. Different superscripts in the same column showed statistically significant differences (p <0.05).

Deshmukh et al., ⁴⁶ stated that spray drying generally results in a narrower particle size distribution with excellent flow properties. High Carr index, and Hausner ratio values indicate higher particle cohesiveness, and poor flowability ²⁰. According to Lebrun et al., ²¹, a good powder has the criteria for the Carr index value of ≤15 and the Hausner Ratio value of ≤1.18. The flowability of the flavor enhancing powder with MD 10% and 20% was still acceptable, the best flowability was produced after the addition of 30% coating material with Carr index values of 14.17 (good) and Hausner ratio 1.17 (good). These results are consistent with the findings reported by Cao et al., ²⁹. Products with higher Hausner ratio tend to be cohesive, characterized by a higher moisture content ⁴⁰. Also, particle size, hardness, surface shape, elasticity to interstitial air determine the cohesiveness of the powder which determines the product flowability ¹⁵.

Conclusion

Based on the analysis of physical and chemical characteristics, the best umami flavor enhancing microcapsules from the Sargassum aquifolium seaweed extract from spray drying were produced by adding 30% MD. L-glutamic acid levels in the umami flavor enhancing microcapsules reach 0.46 g/100 g. Microcapsules have low moisture content (3.10 %), a_w (0.21), and Hg (15.47 %), which are good for product shelf life because they are able to withstand the rate of damage both biologically, chemically, and physically. Although the product wettability time is relatively long (689 s), the microcapsules have excellent solubility (WSI 94.49 % and WAI 0.06 %) and are favored by the industrial world. The powder is slightly yellowish-brown in color with good brightness (L* 81.49, a* 3.16, b* 14.29, C° 14.64, H° 77.52). The product flowability and cohesiveness were good, as indicated by the bulk and tapped density values of 0.46 g/mL and 0.54 g/mL, then Carr index 14.17 and Hausner ratio 1.17. The powder particle size ranged from 0.19 to 59.37 µm with smooth surface morphology and uniform shape.

Acknowledgement

The authors are thankful to the Research Institute of the Muhammadiyah University of Semarang which facilitated this research.

Conflict of Interest

The authors declare no conflict of interest.

Funding Sources

The author(s) received no financial support for the research, authorship, and/or publication of this article.
